Clamping SG7-7
- Unit Price:US$2.36~US$14.29
- MOQ: no request
- Lead Time:7~15days
- Application:Used for transmitting power in kinds of mechanical equipment such as blower fan
- Features:
- Using keyway connect, plate springs coupling.
- Zero backlash, easy disassembly and assembly.
- Excellent response and high torque capacity.
- Identical clockwise and anticlockwise rotational characteristics.
- Stainless steel plate springs absorb parallel, angular misalignment and shaft end-play.
- Material:
- Steel Alloy, Stainless Steel Diaphragm
- Finish:
- Black Oxide
- Remark:

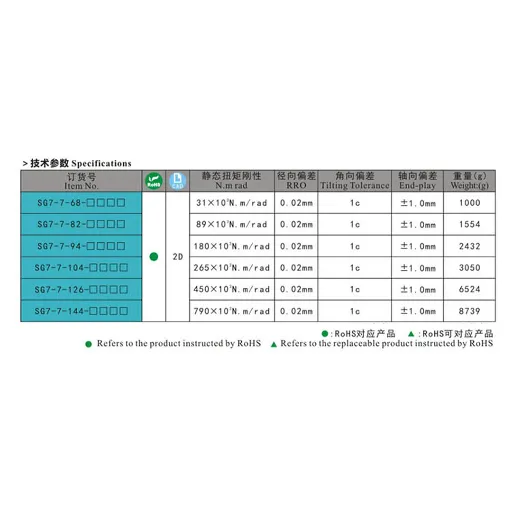

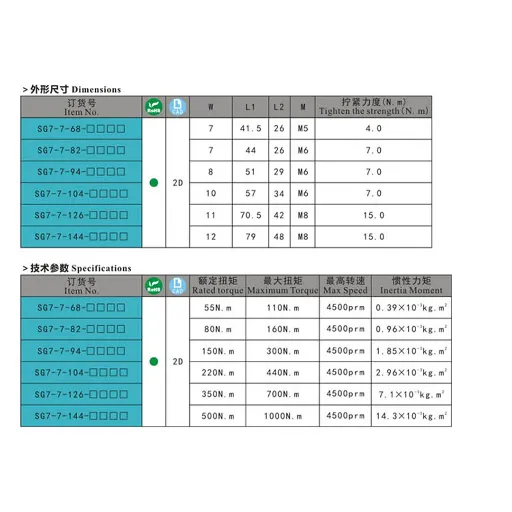

- The moment of inertia and the quality is calculated according to the maximum shaft hole

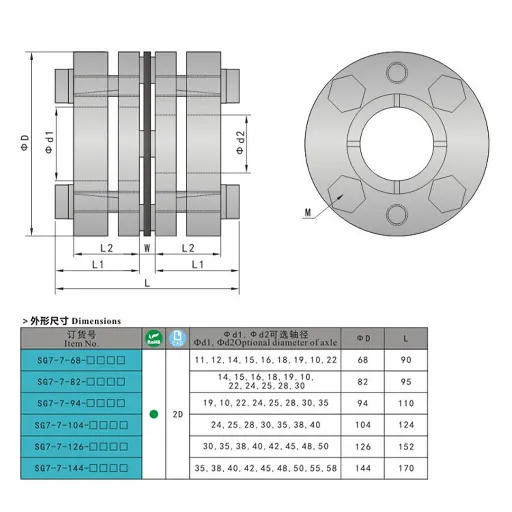

- Bore dimensions can be customized
