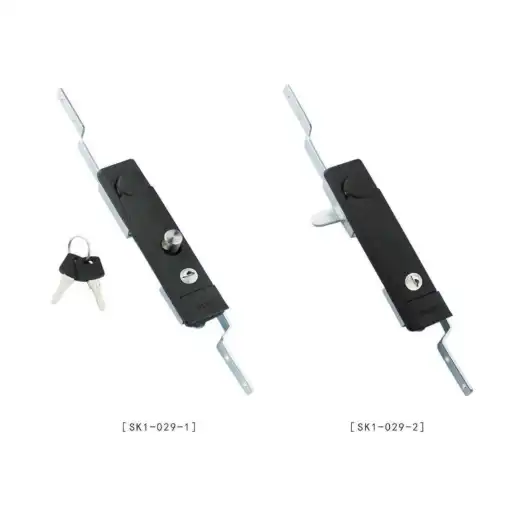

Multi-point Lock SK1-029
- Unit Price:US$7.29~US$8.87
- MOQ: no request
- Lead Time:7~15days
- Application:Control box;Powerbox;Communication cabinet,etc.
- Features:

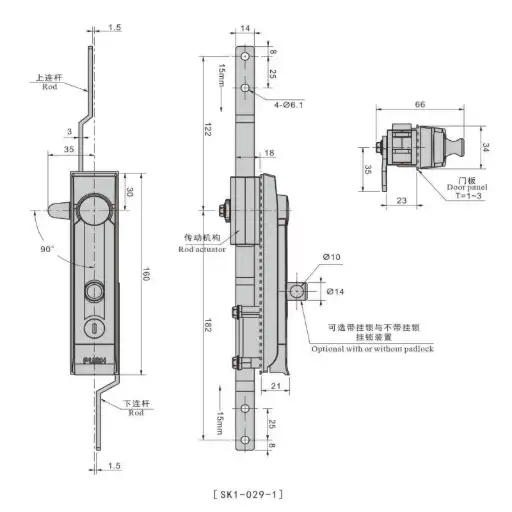

- Rotating the handle at 90 degrees, through the transmission mechanism to open or close;

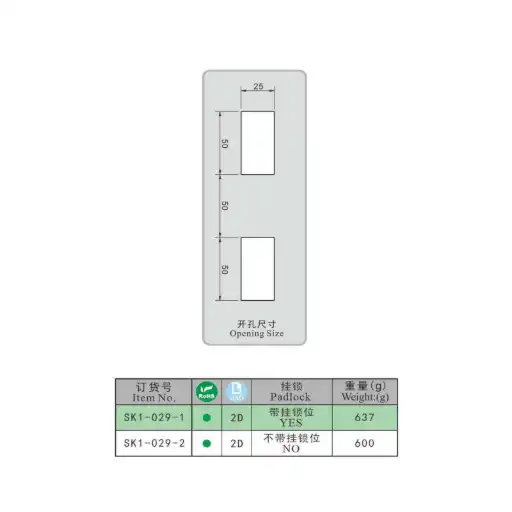

- Spigot height: 23mm, Panel thickness : 1.0-3.0mm, Telescopic distance:15mm;
- Transmission body use as drive plate,with waterproof sealing;
- Transmission strips position and pawls direction suitable for left or right opening;
- Material:
- Body and Transmission shell: Zinc Alloy(ZDC);
- Pawl and connecting rod: Carbon Steel
- Finish:
- Body and Transmission shell: Black Painted;
- Pawl and connecting rod: Zinc Plated
