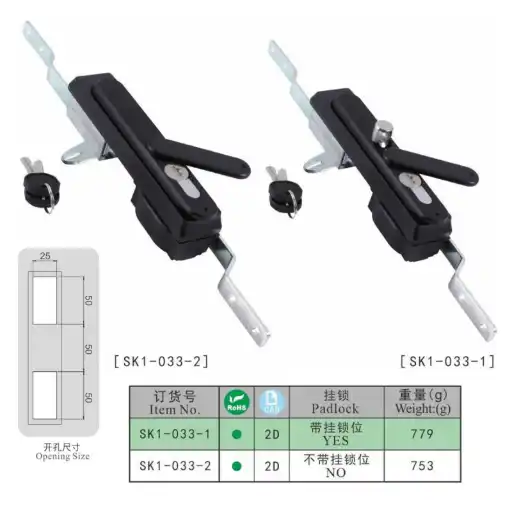

Multi-point Lock SK1-033
- Unit Price:US$7.43~US$9.20
- MOQ: no request
- Lead Time:7~15days
- Application:Control box;Powerbox;Communication cabinet;etc
- Features:
- Rotating the handle at 90 degrees, through the transmission mechanism to open or close;

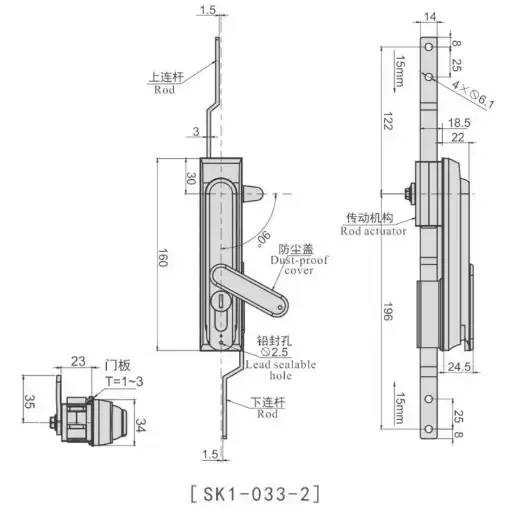

- Spigotheight:23mm,Panel thickness :1.0-3.0mm,Telescopic distance:15mm;
- Transmission body use as drive plate,with waterproof sealing;
- Transmission strips position and pawls direction suitable for left or right opening.
- Material:
- Body and Transmission shell: Zinc Alloy (ZDC);
- Pawl and connecting rod: Carbon Steel
- Finish:
- Body and Transmission shell: Black Painted;
- Pawl and connecting rod: Zinc Plated;
