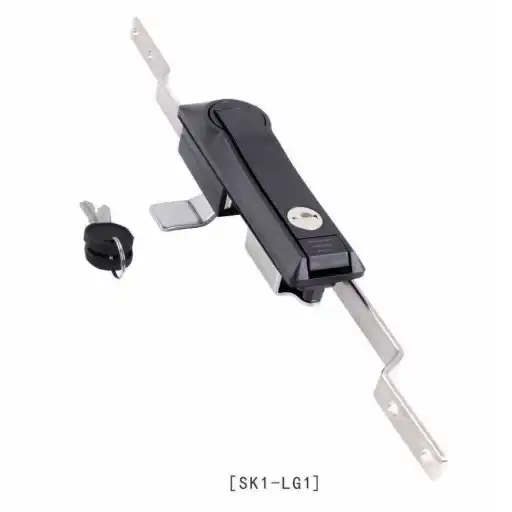

Multi-point Lock SK1-LG1
- Unit Price:US$4.73~US$5.44
- MOQ: no request
- Lead Time:7~15days
- Application:Control box;Power box;Communication cabinet,etc.
- Features:
- Quickly opening,easy to install;
- Rotating the handle with 90 degree to open or close;
- Transmission strips can be removed as single point lock using;
- Transmission strips position and pawls direction;
- Suitable for left and right side opening.
- Material:
- Body:Plastic;
- Transmission strips:Aluminum Alloy+Stainless Steel(SUS304)
- Finish:
- Black
- Remarks:
- According to the box height you can choose connecting rod as your requirement;
- Before changing the left-opening or right-opening type,it is necessary to know the assembly relationship between the parts, otherwise the assembly will be unsuccessful;
- The recommended tightening torque for the clamp screw is 1.0~1.2N.m ;
